JIS
B2220-1986 Nominal
Pressure 5K |
 |

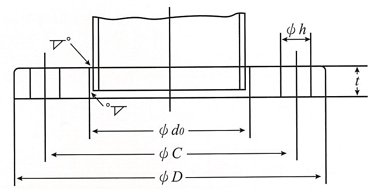

Nominal Diameter
10 to
400 Unit:
mm
|
Nominal
Pipe
size
|
Outside
Dia. of
steel
pipe to
be applied |
Dia. of
hole
to be
inserted
dO |
Outside
Dia.
D |
Bolt hole |
Number
of
bolts
|
t |
Approx.
Weight
kg |
|
Dia.of
central
circle
C |
Dia.
h |
|
10
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400 |
17.3
21.7
27.2
34.0
42.7
48.6
60.5
76.3
89.1
114.3
139.8
165.2
216.3
267.4
318.5
355.6
406.4 |
17.8
22.2
27.7
34.5
43.2
49.1
61.1
77.1
90.0
115.4
141.2
166.6
218.0
269.5
321.0
358.1
409.0 |
75
80
85
95
115
120
130
155
180
200
235
265
320
385
430
480
540 |
55
60
65
75
90
95
105
130
145
165
200
230
280
345
390
435
495 |
12
12
12
12
15
15
15
15
19
19
19
19
23
23
23
25
25 |
4
4
4
4
4
4
4
4
4
8
8
8
8
12
12
12
16 |
9
9
10
10
12
12
14
14
14
16
16
18
20
22
22
24
24 |
0.27
0.30
0.37
0.45
0.78
0.83
1.07
1.49
1.99
2.39
3.23
4.41
6.33
9.45
10.3
14.0
16.9 |
Remarks: 1.
Those of nominal diameters given
in parenthesis should not be
used preferably as far as
possible.
2. The bolt
hole diameters (h) shall be in
accordance with are Grade 3 of
JIS B 1001 in the case where the
nominal designation of screw
thread of the bolt are M16 or
under, and be in accordance with
Grade 2 of JIS B 1001 in the
case where the nominal
designation of screw thread of
the bolt is M 30. Furthermore,
in the case where the nominal
designations of screw thread of
the bolt is M 20 or over, the
ordinary bolts of the Appendix
of JIS B 1180 shall be
particularly used for the pumps
of general use. When the bolt
hole diameters (h) in the table
are not applicable, the Grade 3
of JIS B 1001 may be used as
agreed upon between the parties
concerned to the delivery.
3. The gasket
facings of
flanges shall be in accordance
with JIS B 2202.
4. The mass
has been calculated assuming the
density of steel as 7.85 g/cm3.
Reference:
Regarding
materials and shapes of bolts
and nuts, refer to Reference 2
of JIS B 2210. |
JIS
B2220-1986 Nominal
Pressure
5K |
 |

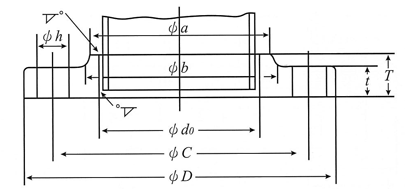

Nominal Diameter 450 to
1000 Unit: mm
|
Nominal
Pipe
size |
Outside
Dia. of
steel
pipe to
be applied |
Dia. of
hole
to be
inserted
dO |
Dimensions of each part of flange |
Bolt hole |
approx
weigh
kg |
|
Outside Dia.
D |
t |
T |
Dia. of hub |
Dia.
of
central
circle
C |
Dia.
h |
No. |
|
a |
b |
|
450
500
600
700
800
900
1000 |
457.2
508.0
609.6
711.2
812.8
914.4
1016.0 |
460
511
613
715
817
919
1021 |
605
655
770
875
995
1095
1195 |
24
24
26
26
28
30
32 |
40
40
44
48
52
56
60 |
495
546
648
751
854
956
1058 |
500
552
654
758
862
964
1066 |
555
605
715
820
930
1030
1130 |
25
25
27
27
33
33
33 |
16
20
20
24
24
24
28 |
24.8
26.9
37.5
45.4
60.8
75.3
88.5 |
|
|
Remarks: 1.
Those
of nominal
diameters given in parenthesis should not be used
preferably as far as possible.
2. The bolt
hole diameters
(h) shall be
in accordance with are Grade 3
of JIS B 1001 in the case where
the nominal designation of screw
thread of the bolt are M16 or
under, and be in accordance with
Grade 2 of JIS B 1001 in the
case where the nominal
designation of screw thread of
the bolt is M 30. Furthermore,
in the case where the nominal
designations of screw thread of
the bolt is M 20 or over, the
ordinary bolts of the Appendix
of JIS B 1180 shall be
particularly used for the pumps
of general use. When the bolt
hole diameters (h) in the table
are not applicable, the Grade 3
of JIS B 1001 may be used as
agreed upon between the parties
concerned to the delivery.
3. The gasket
facings of flanges shall be in
accordance with JIS B 2202.
4. The mass
has been calculated assuming the
density of steel as 7.85 g/cm3
Reference:
Regarding materials and shapes of bolts and nuts,
refer to Reference 2 of JIS B
2210.
|
|
